The wear resistant ceramic lined pipe for industry is divided into three types:
SHS Ceramic Composite Pipe
Ceramic Patch Pipe
Ceramic Armord Pipe
The lined pipe are widely used in power generation, cement industry, steel production, mining, coal, chemical industry and other industries.
Feature:
• Excellent Wear Resistance
The liner of SHS ceramic composite pipe is a kind of steel jade layer (Al₂O₃), the Mohs hardness can reach 9.0. It has high abrasion resistance to the abrasive media transported by the steel production, power production, mining, coal and other industries. Its wear life is ten or even tens of times longer than that of hardened steel, as confirmed by industrial operation.
• Heat Resistance
The wear-resistant layer has a single stable crystalline structure, with a melting point of 2100 and an expansion coefficient of 6-8 x 10-6/°C ( insulation temperature up to 4000K).
• Impact resistance
Due to the high density and hardness of the wear-resistant layer and the dense bonding between the layers, the wear-resistant layer has good impact resistance for any medium conveying.
• Corrosion-resistant & Non-scaling
The wear-resistant layer is a neutral crystalline substance that is resistant to acid, alkali and seawater corrosion. Furthermore, the product effectively prevents dirt from accumulating on the interior of the pipe.
• Running Resistance
The inner surface of the self-spreading high temperature synthetic ceramic lined pipe is smooth and will never rust or corrode. Its surface smoothness is superior to that of any metal wear-resistant pipe. The resistance coefficient of the pipe is 0.0192, which is characterised by low running resistance.
• Low Project Cost & Easy Installation
This pipe is light weight ( 50% lighter than cast stone pipe, 20-30% lighter than wear-resistant alloy pipe), reasonably priced and has a long service life. Due to its weldable properties, it can be welded, flanged, and quick-connected. It is easy to install and can effectively reduce the installation cost.
Application:
• Metallurgy, power generation industry conveying coal powder, grey slag, slurry, etc.
• Mining filling, concentrate powder and tailings conveying.
• Coal industry: pipes for wet conveying.
• The SHS ceramic composite pipe has excellent performance and economic value return in medium conveying containing solid particles abrasive materials and high temperature corrosive gases, sulphurous geothermal water and so on.
Pipe Size:
DN55-680, specific size can be customised.
Test Data：
| Abrasion Resistance | |||||||||
| Sandblasting test | Comparative test of 30% SiO₂ mud erosion | ||||||||
| Material | Volume reduction (cm3) | Material | Volume reduction (cm3) | ||||||
| 97% aluminium oxide pipe | 0.0025 | 45# steel pipe | 25 | ||||||
| SHS ceramic composite pipe | 0.021 | SHS ceramic composite pipe |
2 |
||||||
| Mechanical Performance Testing | |||||||||
| Material | Hardness HV (kg/mm2) | Crush strength (Mpa) | Surface quality | Ceramic layer density | Interlayer bonding strength (Mpa) | No. of mechanical impacts | Thermal shock resistance (°C) | ||
| Carbon steel pipe | 149 | 411 | / | / | / | / | / | ||
| SHS ceramic composite pipe | 1100-1400 | 300-650 | smoothness | 3.85-3.95 | 15-30 | 15 | 1000 | ||
| Corrosion Resistance Test Comparison | |||||||||
| Material | 10%HGL (g/m2 H) | 10%H2SO4 (g/m2 H) | 30% ACETATE (g/m2 H) | 30%NaOH (g/m2 H) | |||||
| Stainless Steel | 0.1-1 | 3-4 | 0.1 | 0.1 | |||||
| SHS ceramic composite pipe | 0.08-0.1 | 0.145 | 0.026 | 0 | |||||
2. Ceramic Patch Pipe

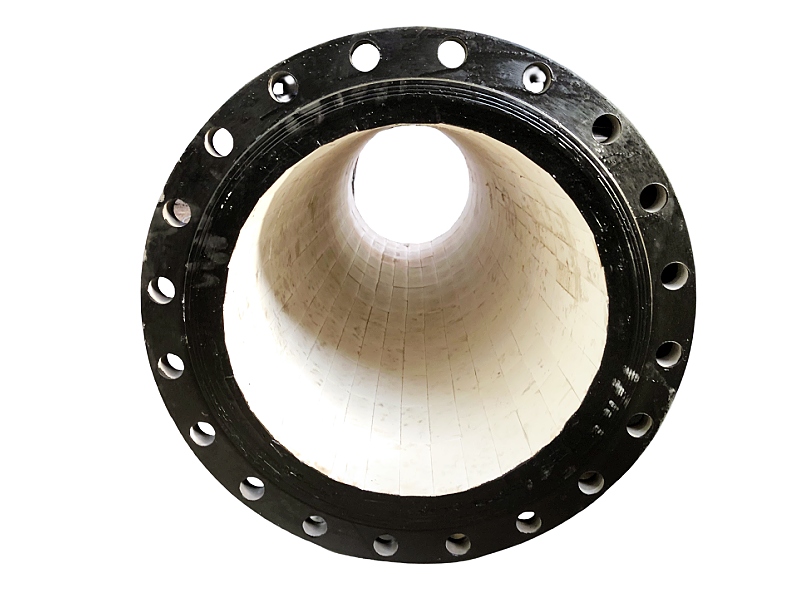

The ceramic patch pipe is a kind of lined pipe with unique performance. It adopts metal pipes as the substrate and pastes ceramic patches on its surface, which combines the strength of metal and the excellent characteristics of ceramics such as wear resistance and corrosion resistance. This kind of ceramic lined pipe has a wide range of applications in many fields, which can effectively improve the reliability and service life of the piping system, and provide a high-quality solution for industrial production and engineering construction.
Application:
It is suitable for material conveying system and batching system in power generation, iron and steel production, mining, cement industry and other industries.
Ceramic patch peripheral products include trough hoppers, powder selecting equipment and pipe parts of dust removal system.
3. Ceramic Armored Pipe
The ceramic armoured pipe is one of the types of ceramic lined pipe. Its process is to cast the whole fired ceramic pipe fittings inside the steel pipe with special filler material. The ceramic lined steel pipe has smooth inner wall, good sealing, and good wear and corrosion resistance.
Application:
Due to the unique performance of ceramic armoured pipe, it can be widely used in power generation, steel production, cement industry, mining, coal, chemical industry and other industries for material conveying.
Performance Parameters：
| Densities | g/cm3 | 3.9 | |
| Water Absorption | % | 0 | |
| Sintering Temperature | °c | 1800 | |
| Hardness | HV | 1700 | |
| Bending Strength | Kgf/cm2 | 3500 | |
| Compressive Strength | Kgf/cm2 | 30000 | |
| Fracture Toughness | Map, m3/2 | 4 | |
| Max. Operating Temperature | °c | 1800 | |
| Coefficient of Thermal Expansion (CTE) | /°c | 8∗10-8 | |
| Thermal Shock Resistance | T(°c) | 200 | |
| Heat Conductivity | W/M, k (25-300°c) | 31.4 15.9 | |
| Volume Resistivity | 20°c | > cm | > 1012 |
| 100°c | 1012-1013 | ||
| 300°c | > 1012 | ||
| Dielectric Breakdown Strength | KV/mm | 18 | |
| Dielectric Constant | 100MHz (E) | 10 | |
Customised Service:
• Reliable quality
• Cost-effective
• Full technical support
• OEM available
• Product test reports
The wear resistant ceramic lined pipe for industry is divided into three types: SHS Ceramic Composite Pipe Ceramic Patch Pipe Ceramic Armord Pipe The lined pipe are widely used in power generation, cement industry, steel production, mining, coal, chemical industry and other industries.
read More
The wear resistant rubber lined pipe for industry is a rubber composite steel pipe which adopts ordinary steel pipe as the skeleton material, and rubber with excellent performance of wear-resisting, anti-corrosion and heat-resisting as the lining layer. The rubber lined pipe is commonly used in metallurgy, electric power, chemical industry, petroleum, coal, cement and other industries for its good anti-corrosion, wear-resistant and impact-resistant performance. Specific applications include concentrate and tailings conveying systems in mines, ash conveying systems in coal-fired power plants, chemical anti-corrosion, backfilling of coal mine shafts and dredging of rivers and harbours. It is especially suitable for conveying medium with temperature between -50℃～+150℃, which is both abrasive and corrosive.
read More
The wear resistant hardfaced pipe for industry is a kind of surfacing wear-resistant pipe formed by surfacing process. According to the use of occasions, you can choose different wear-resistant materials as the liner, the surface hardness can reach up to HRC78 degrees. The hardfaced pipe has the characteristics of wear-resistant, corrosion-resistant, high temperature-resistant, etc., which can maintain good performance and prolong the service life in the harsh working environment. It is widely used in mining, metallurgy, electric power, building materials and other fields for conveying abrasiveness medium.
read More
The wear resistant silicon carbide lining pipe for industry is a type of wear pipe with a lining made of silicon carbide. The enhanced durability, resistance to wear and corrosion, and improved performance of this lining make it ideal for use in a wide range of industrial applications, particularly in harsh environments.
read More
The wear resistant polyurethane lined pipe for mineral beneficiation is a kind of innovative pipe, which is a combination of steel pipe and polyurethane material, with both the strength of steel pipe and the excellent performance of polyurethane. It has good anti-corrosion, wear resistance, heat preservation and other properties, and can work stably in a variety of harsh environments. It is widely used in metallurgical coal prep, mineral beneficiation, limestone preparation, chemical industry, etc., and provides reliable piping solutions for many industries.
